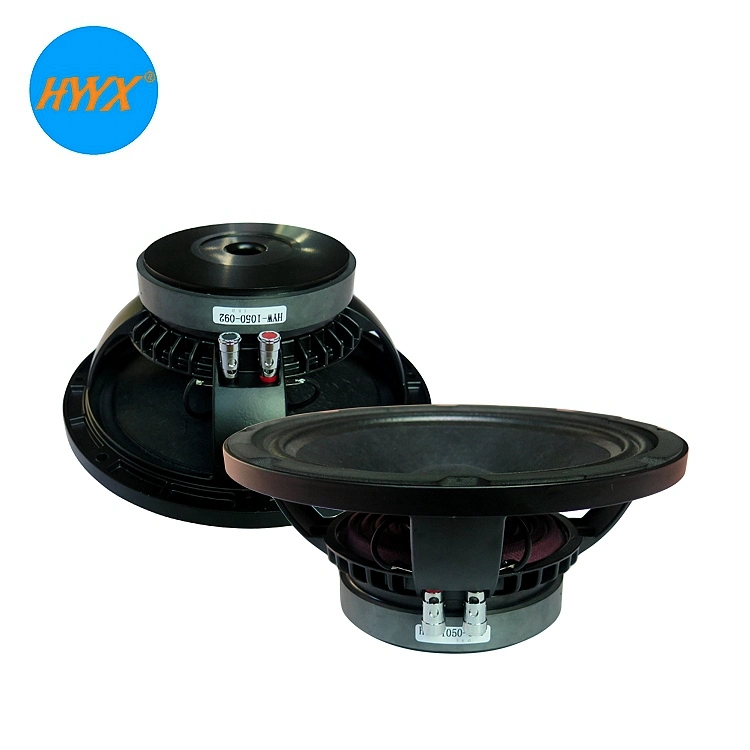

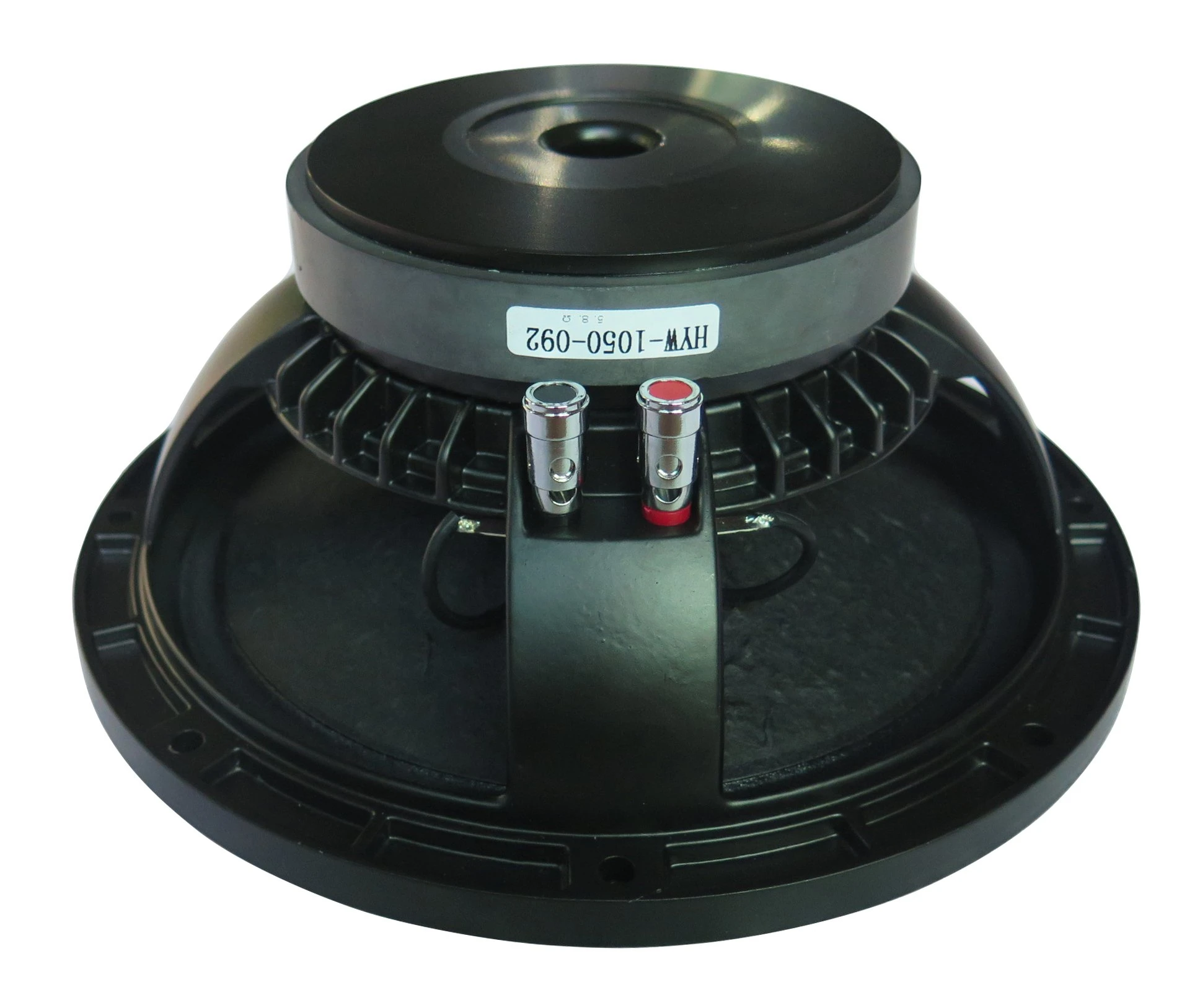

10" PRO Audio Subwoofer Mid-woofer 10" Speaker

  SpecificationFeatures :  -10 inch woofer speaker at lower cost - 500W continuous program power capacity, 250W RMS power handling - 96dB sensitivity - 50hz-4.5khz Frequency response- 2" High temperature Copper VC - Lower cost design but also to be ideal for high quality 2-way or 3-wa

Featured Products




Specification

Features :

-10 inch woofer speaker at lower cost
- 500W continuous program power capacity, 250W RMS power handling
- 96dB sensitivity
- 50hz-4.5khz Frequency response
- 2" High temperature Copper VC
- Lower cost design but also to be ideal for high quality 2-way or 3-way speaker system  .

Speccification :
Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
50-4.5k
Hz
Magnet size
145x20
mm
Magnet material
Ferrite

Sensitivity (1w/1m)
96
dB
Nominal power handling
250
Watts
Continuous power handling
500
Watts
Voice coil diameter
50/2
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

T/S Parameter
Fs
59.8
Hz
Re
5.2
Ω
Qes
0.52

Qts
0.50

Qms
13.6

Vas
33.2
L
Rms
1.0
kg/s
Cms
0.19
mm/N
Mms
37.2
gr
BI
12.5
N/A
Rp
102.8
Ω
Lp
27.3
mH
Cp
519.7
uF
Le
0.8
mH
Xmax (one-way)
7
mm
Mounting information
Overall diameter
261/10.3
mm/inch
Bolt Circle diameter
247/9.7
mm/inch
Baffle Cutout diameter
230/9
mm/inch
Total Depth
118/4.6
mm/inch
Mounting depth
106/4.17

Flange thickness
12/0.47
mm/inch
Shipping information
Net weight
3.34
KG
Shipping weight
4
KG
Shipping box
290x290x145
mm
